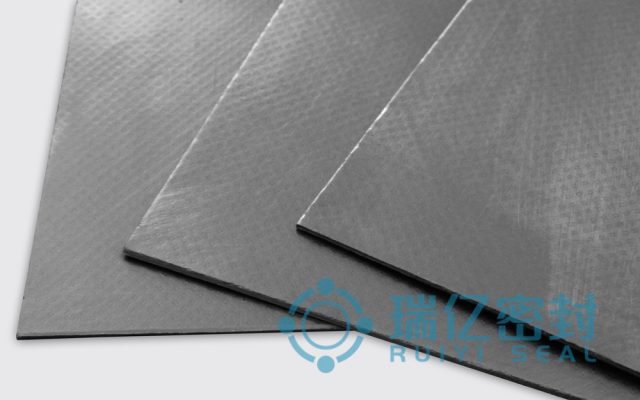

Reinforced Graphite Sheet with Carbon Steel Tanged
Reinforced graphite sheet with 0.20mm carbon steel tanged insert, recommend for making engine head gaskets, exhaust gaskets etc.
RF-C Reinforced graphite sheet is made with expanded graphite sheet reinforced with carbon steel (Tinplate) tanged insert. The both sides are pure expanded graphite sheet, the metal core is one layer or two layers of 0.20mm thick tinplate tanged. The graphite layers and metal core are jointed together with mechanically bonded.
Reinforced graphite sheet is ideal gasket sheet materials for most industrial fluid sealing applications. Recommend to be used in refineries, chemical and petrochemical plants, paper mills, mines and other industrial fields.
- Reinforcement material: 0.20mm thick tinplate tanged.
- Layers of metal core: 1 or 2 layers.
- Working temperature: 650°C
- Working pressure: 200bar
- Bond: mechanically
Our products
| Product code | Description |
| RF-T | Reinforced graphite sheet with 0.10mm SS304 or SS316 tanged insert |
| RF-F | Reinforced graphite sheet with 0.05mm SS304 or SS316 flat foil insert |
| RF-W | Reinforced graphite sheet with stainless steel wire mesh insert |
| RF-C | Reinforced graphite sheet with 0.20mm Tinplate tanged insert |
| RF-G | Reinforced graphite sheet with glass fiber insert |
| RF-AL | Reinforced graphite sheet with Aluminum foil insert |
| RF-Ni | Reinforced graphite sheet with Nickel foil insert |
Dimensions
| Thickness | Width | Length | |
| RF-T | 0.8mm to 6.0mm | 0.5Mtr, 1.0Mtr, 1.5Mtr | 1.0Mtr, 1.5Mtr, 2.0Mtr |
