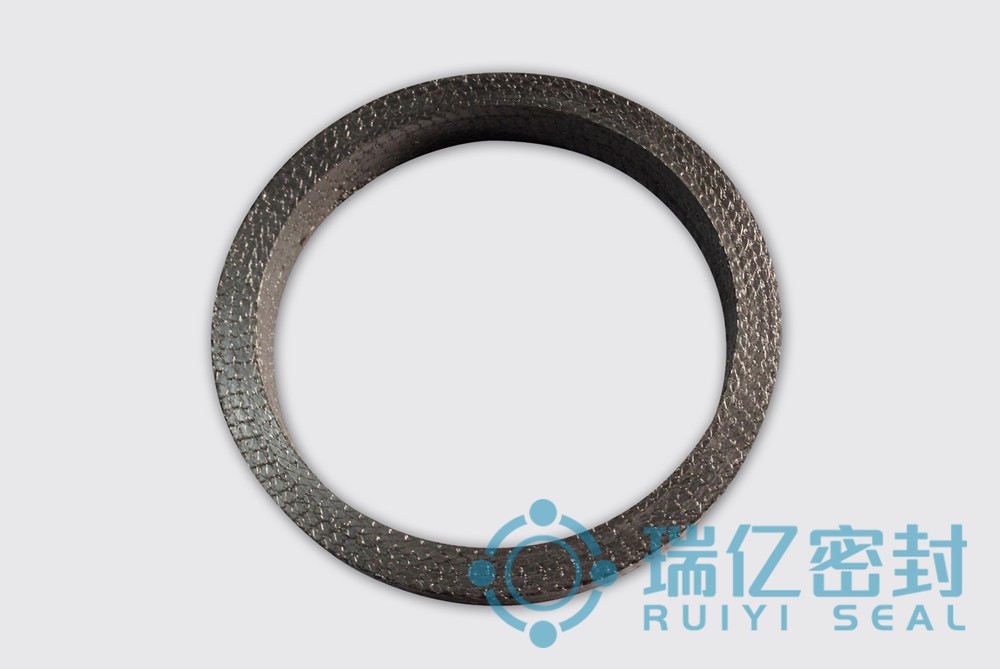

Reinforced Graphite Packing Ring
Graphite packing ring reinforced by stainless steel wire mesh
Reinforced graphite packing rings are made by high purity expanded graphite tape and with stainless steel wire mesh insert. recommend used for high working pressure condition.
- Carbon content: 99.0%
- Density: 1.6g/cm3
- Working temperature: 650°C
- Working pressure: 300bar
- Cross section: Square, O, V and Wedge-shape
Our products
| Product code | Description |
| GR-I | Pure graphite packing ring |
| GR-R | Graphite packing ring reinforced by SS wire |
| GR-C | Graphite packing ring with SS Caps |
| GR-M | Graphite packing with SS wire both ends |
| GR-B | Braided packing ring |
| GR-W | Stainless steel wire ring |
Dimensions
| Thickness | OD | ID | |
| Graphite packing ring | >3mm | 10-1000mm | 20-1100mm |
