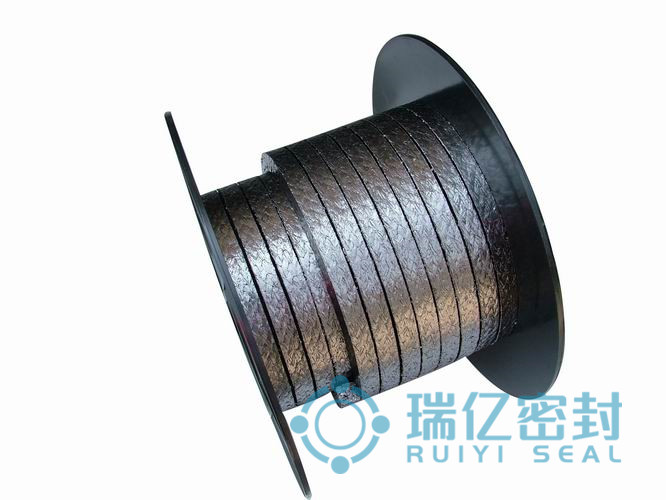

Graphite Packing with Inconel Wire
Each graphite yarn reinforced with an Inconel wire, outside braided or crocheted Inconel wire jacket
Graphite Packing reinforced with Inconel wire is made with graphite yarn cross braided, each strand is reinforced by an Inconel wire. And we also make outside braided or crocheted Inconel wire jacket graphite packing. Recommend for high temperature and high pressure working condition.
Reinforcement Materials
- Graphite packing reinforced by Multi-Inconel wire
- Outside braided Inconel Jacket graphite packing
- Outside crocheted Inconel jacket graphite packing
Technical Data
| Rotating | Reciprocating | Value | |
| Pressure | 3Mpa | 10Mpa | 30Mpa |
| Temperature | -200℃to +550℃ | ||
| Shaft Speed | 23m/s | ||
| PH | 0-14 | ||
Packing
5Kg/Roll, 10Kg/Roll
