Flexible Graphite Foil

Flexible graphite foils are made of high purity expandable graphite for most industry sealing applications.

Category:
General Details

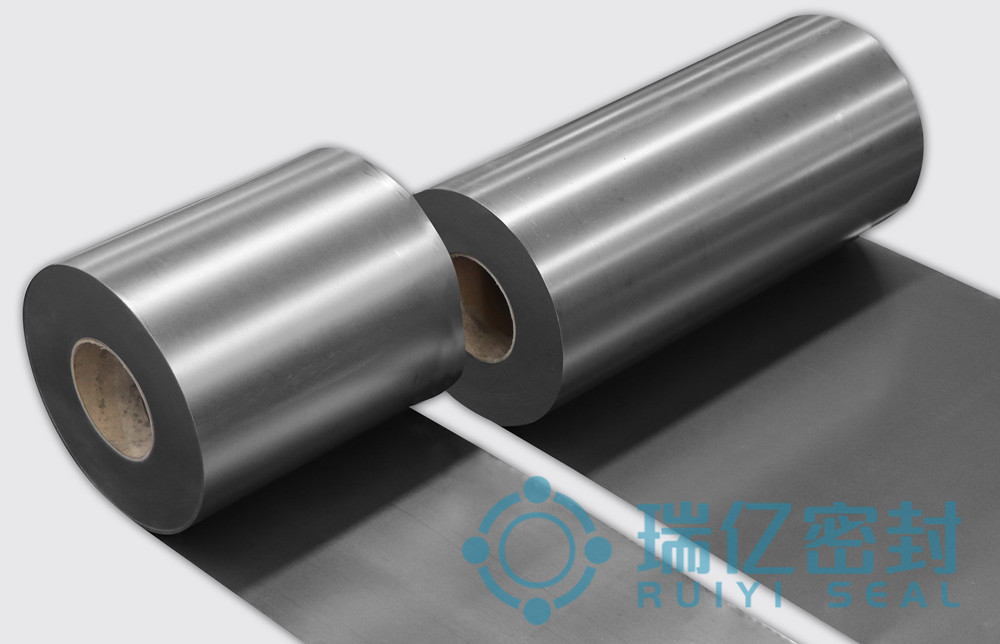

Flexible Graphite Foil

Flexible graphite foil is made of pure expanded natural graphite. It is the best material in sealing applications at high temperature. To meet the increasingly demanding sealing applications in different industrial fields, Ruiyi Seal offers a wide range of flexible graphite foils in roll and in sheet with high purity, low sulfur content and oxidation resistance.

Our flexible graphite foils are widely used in making various gaskets and gasket materials, such as graphite packing ring, corrugated graphite tape, reinforced graphite sheet and gasket, spiral wound gasket, corrugated gasket, kamprofile gasket, double jacketed gasket and heat exchanger gasket, etc. And our graphite foils can also be used as solid lubricant in metal stamping and forming applications, or as heat liner in industry furnaces and other heating devices.

  • High Carbon content from 98.0% to 99.9%
  • Contains no rubber or binder, 100% pure graphite.
  • Widely working temp. from -200°C to +3300°C in non-oxidizing.
  • Chemistry resistance, oxidation resistance and corrosion resistance.
  • Density from 0.7g/cm3 to 1.1g/cm3
  • Thickness from 0.2mm to 6.0mm



Our products



Product code Description
GF-I Industrial Grade Flexible Graphite Foil with 98.0% min. carbon content
GF-S Flexible Graphite Foil with 800ppm max. low sulfur content
GF-O Oxidation resistance flexible graphite foil with high working temperature
GF-N Nuclear Grade Flexible Graphite Foil with 99.5% min. carbon content



Dimensions



Thickness Width Length
Graphite Sheet 0.2 to 6.0mm 1Mtr, 1.5Mtr 1Mtr, 1.5Mtr, 2.0Mtr
Graphite Roll 0.2 to 1.0mm 1Mtr, 1.5Mtr 30Mtr to 120Mtr



Technical Data
